1.5mm To 5.0mm Thick 1.5W High Thermal Conductivity Soft Silicone Pad For CPU GPU Semiconductor Heat Dissipation Thermal Pad

Product Categories
Dongguan Ziitek Electronic Materials & Technology Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

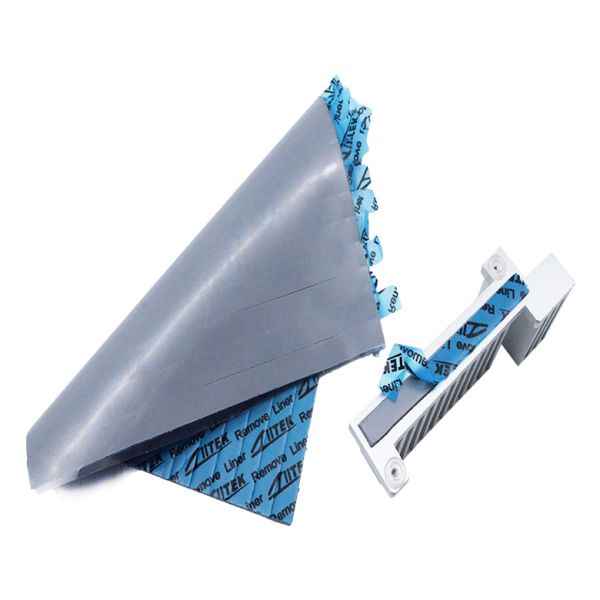

1.5mm To 5.0mm Thick 1.5W High Thermal Conductivity Soft Silicone Pad For CPU GPU Semiconductor Heat Dissipation Thermal Pad

  • 1
  • 2

Brand Name : ZIITEK

Model Number : TIF100-10E Series

Certification : UL and RoHs

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Supply Ability : 100000pcs/day

Delivery Time : 3-5 work days

Packaging Details : 1000pcs/bag

Products name : 1.5mm To 5.0mm Thick 1.5W High Thermal Conductivity Soft Silicone Pad For CPU GPU Semiconductor Heat Dissipation Thermal Pad

Keywords : Thermal Pad

Thermal conductivity : 1.5W/m-K

Color : Gray

Continuous Use Temp : -45 to 200℃

Sample : Sample free

Thickness : 0.020"(0.5mm)~0.200"(5.0mm)

Hardness : 35 Shore 00

Application : CPU GPU Semiconductor Heat Dissipation

Contact Now

1.5mm To 5.0mm Thick 1.5W High Thermal Conductivity Soft Silicone Pad For CPU GPU Semiconductor Heat Dissipation Thermal Pad

The TIF®100-10E Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.


Features


> Good thermal conductive: 1.5W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Outstanding thermal performance
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available


Applications


> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

> Display card
> Mainboard/mother board
> Notebook
> Power supply
> Heat pipe thermal solutions

Typical Properties of TIF®100-10E Series
Property Value Test method
Color Gray ******
Construction &Compostion Ceramic filled silicone elastomer ******
Thickness range 0.020"(0.5mm)~0.200"(0.50mm) ASTM D374
Specific Gravity 2.3g/cc ASTM D297
Hardness 35 Shore 00 ASTM 2240
Continuos Use Temp -45 to 200℃ ******
Dielectric Breakdown Voltage > 5500 VAC ASTM D149
Dielectric Constant 4.7 MHz ASTM D150
Volume Resistivity 2.0 X1012 Ohm-meter ASTM D257
Flame rating 94 V0 UL E331100
Outgassing(TML) 0.35% ASTM E595
Thermal conductivity 1.5 W/m-K ASTM D5470

Product Specification

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)

Individual die cut shapes and custom thickness can be supplied, Please contact us for comfirming.

1.5mm To 5.0mm Thick 1.5W High Thermal Conductivity Soft Silicone Pad For CPU GPU Semiconductor Heat Dissipation Thermal Pad

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials.

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract.

5.Free sample offer.

6.Quality assurance contract.
